How to setup site-to-site VPN with WFilter’s SD-WAN service?

WFilter’s SD-WAN service is an integration of the ZeroTier networking. With SD-WAN, you are able to build secure site-to-site VPN tunnels without needing a static public IP address.  This guide will show you the necessary steps using WFilter NGF.

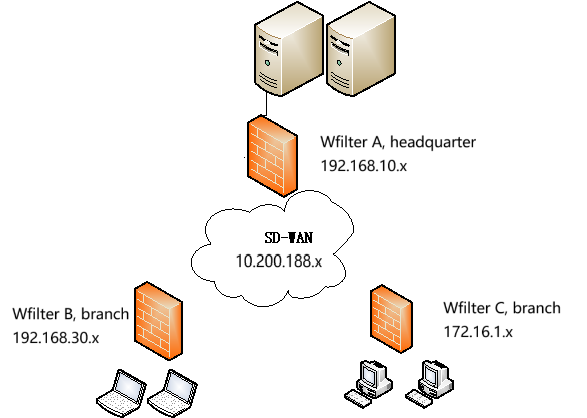

1. Network topology

202202161644989114139685

As shown in the above topology diagram, headquarter and two branches all use WFilter NGF as gateway. By adding each gateway into the SD-WAN network, you will be able to setup secure site-to-site VPN tunnels.

2. SD-WAN subnet settings

First setup a SD-WAN network in the WFilter cloud service.

Sdwan network01.png

Sdwan network02.png

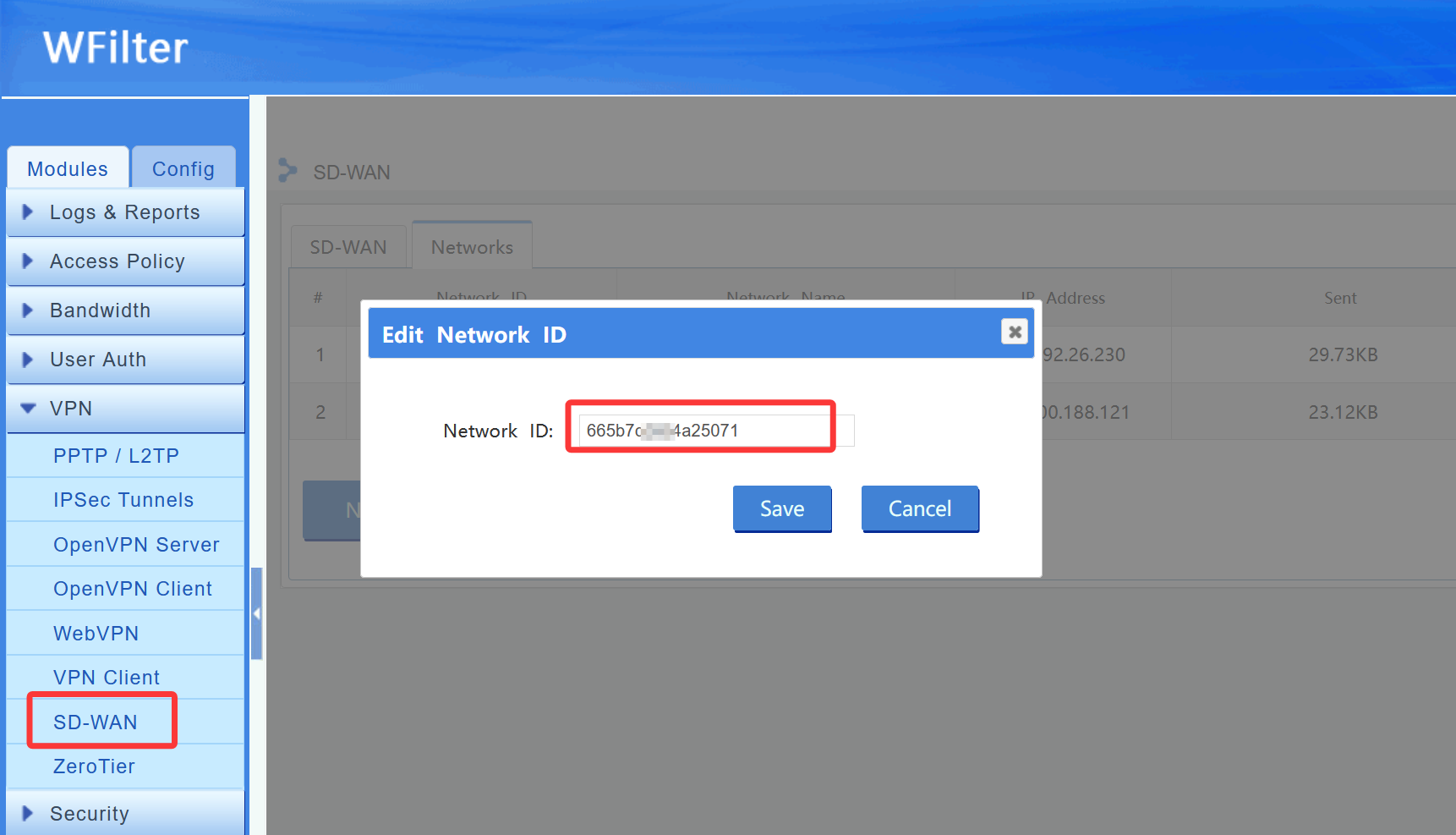

3. Join every WFilter into the SD-WAN network

QQ20250707-145422

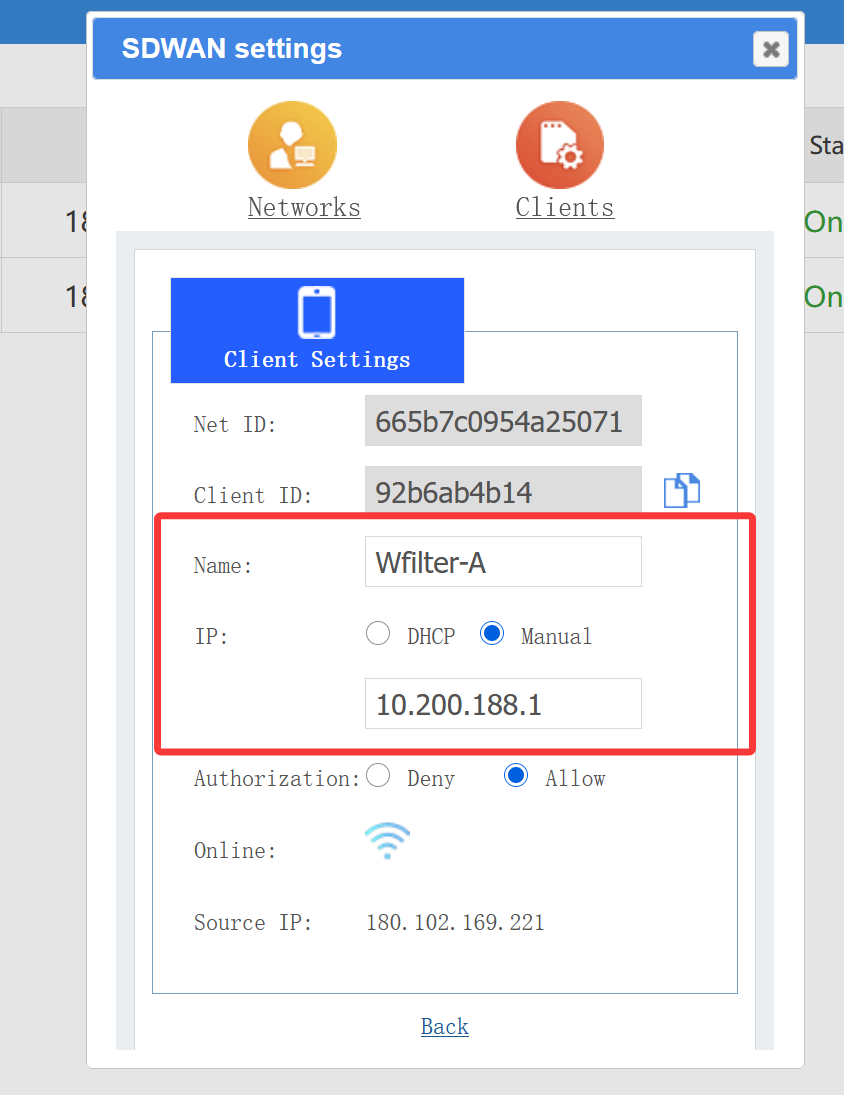

4. Assign SD-WAN ip and setup routing

QQ20250707-145655

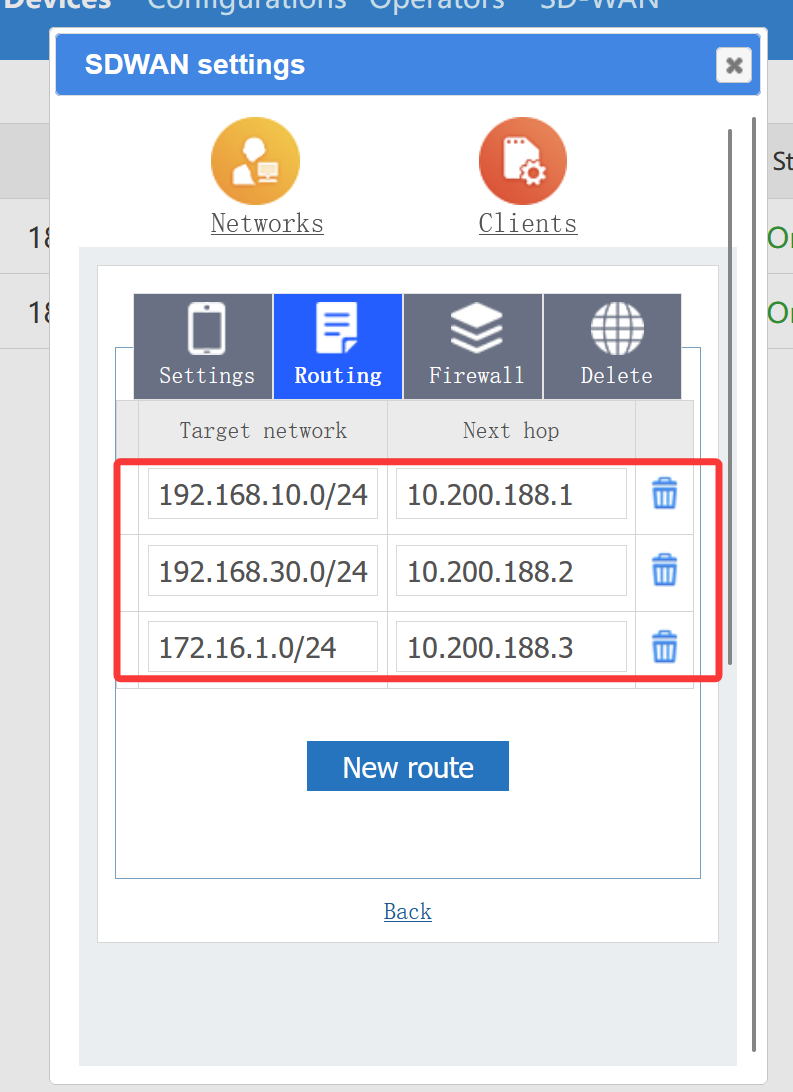

Assign static SD-WAN ip addresses to every WFilter, for example: WFilter A(10.200.188.1), WFilter B(10.200.188.2), WFilter C(10.200.188.3). Then you can setup SD-WAN routing policy to forward LAN traffic.

QQ20250707-150606

After the above setups, each local area network can directly access each other. To restrict access, you also can setup firewall rules in WFilter’s firewall->Rules.

Remote management via the WFilter cloud service.

The Wfilter cloud service enables centralized management of multiple WFilter devices. It allows users to view device addresses, system versions, IP addresses, and alarm information, as well as remotely access the management interface and synchronize configurations. This article outlines the basic steps for using the Wfilter cloud service.

1. Register on the Wfilter cloud service

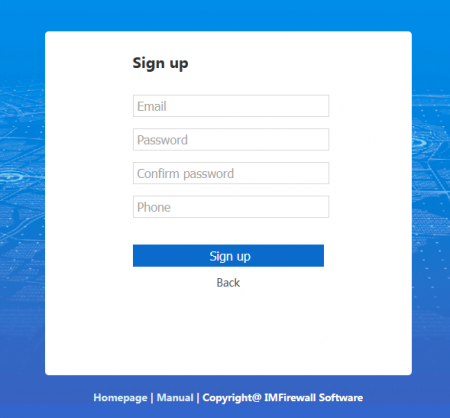

First, you need to register a new account on the Wfilter cloud service and log in. As shown in the figure below:
Cloud register2.png

2. Configure the endpoint WFilter to join the cloud service

As shown in the figure below, record the cloud service network ID, and setup SD-WAN to join this network in the SD-WAN of the WFilter. In the Wfilter cloud service, copy sdwan network ID.
Cloud dashboard1.png
In Wfilter web-UI, join cloud network.
Cloud clients3.png

3. Add WFilter client in the cloud platform

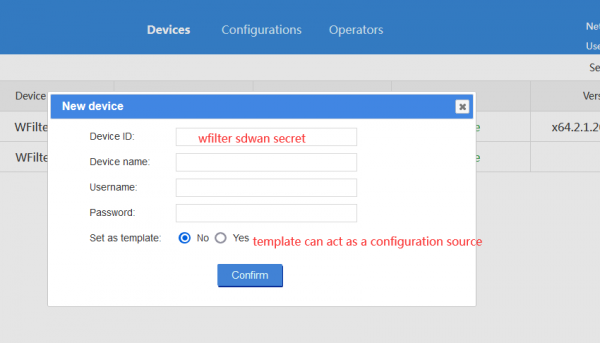

The third step is to add the Wfilter client device in the cloud platform. As shown in the figure below, add client’s SD-WAN secret in “Devices” in the cloud platform.
Cloud clients2.png
After the above steps, you are able to manage the added Wfilter clients in the Wfilter cloud service, including:
  • View device address, system version, IP address, and alert information
  • Synchronize configurations in different Wfilter devices
  • Access the management interface via Internet
